USB AVR编程器 Arduino下载器 3Pi Robot下载器 Pololu 原装进口

  • 奥松售价:
  • 商品编号:
    RB-03T037
  • 商品库存:
    有货
  • 商品重量:
    23克
  • 商品品牌:
    Pololu
  • 购买此商品可使用:
    0 松籽
  • 商品评价:
    comment rank 5 (已有 0 人评价)
    联系客服
    • 销售咨询: 销售咨询
    • 销售咨询:
    • 技术支持: 技术支持
    • 咨询电话: 0451-86628691

通知:


通知:奥松机器人科技有限公司于2013年正式成为美国Pololu官方授权中国区域代理商,此款产品由于数量有限,拍下时请咨询客服是否有库存。

产品介绍:

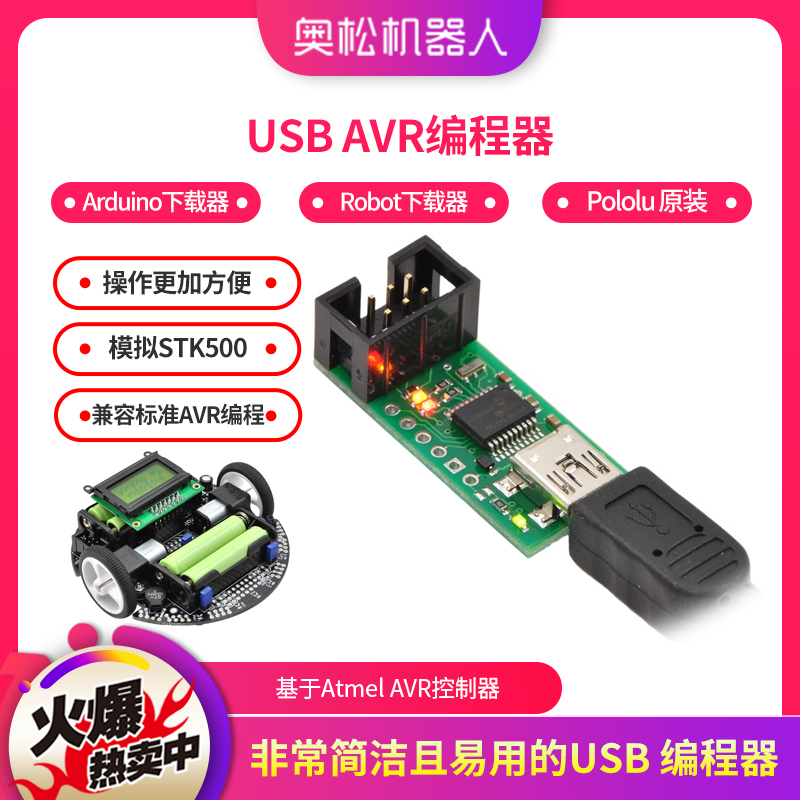

这是一款非常简洁且易用的USB 编程器,该装置基于Atmel AVR控制器,使得我们的3Pi Robot操作更加方便。除此之外他还具备模拟STK500的虚拟串口,兼容标准AVR编程软件。这两个额外的功能,可以帮助我们构建和调试TTL串行端口用于通用的沟通和SLO-监测信号及电压等级范围等项目。此款产品支持Windows XP, Windows Vista, Windows 7, Windows 8, and Linux等操作系统。

产品图片:

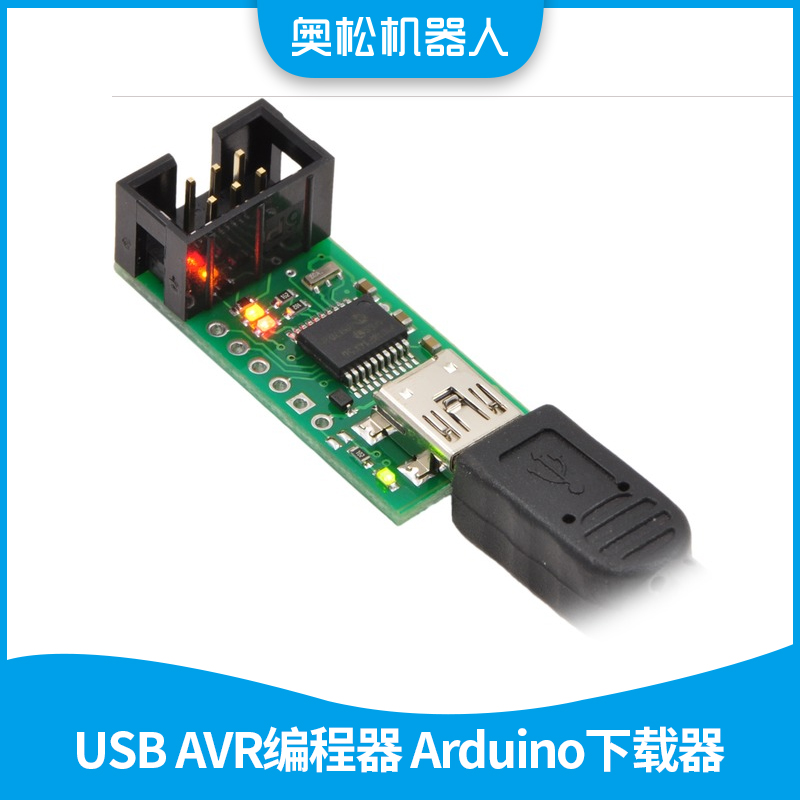

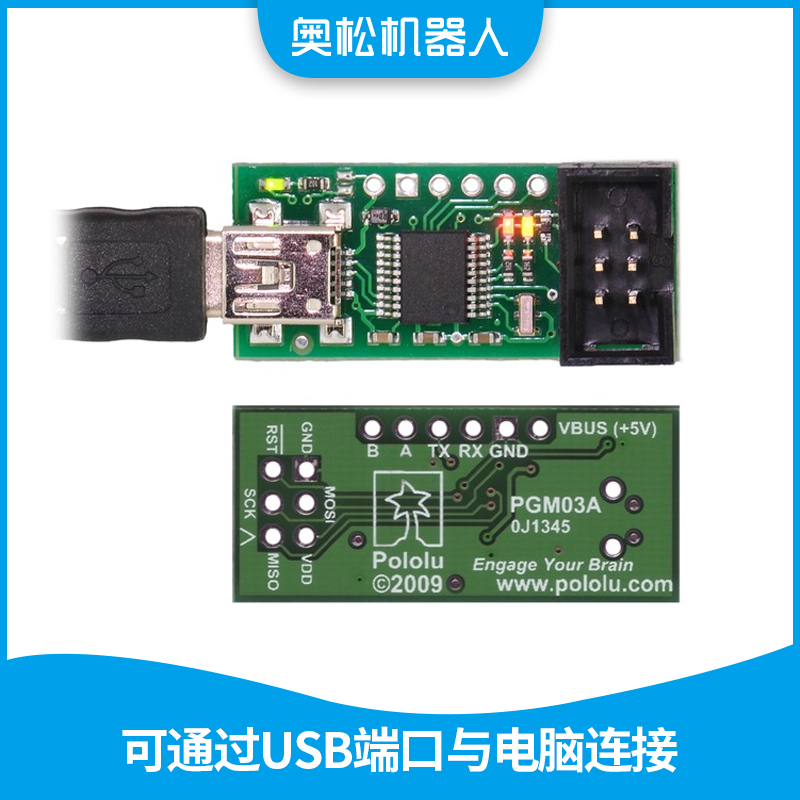

电子元件清晰标注




实物比对 尺寸标注准确

产品特点:

1、产品名称:Pololu USB AVR下载器

2、产品货号:RB-03T037

3、一般的AVR ISP 编程:基于 Atmel AVR 控制器,可通过USB端口与电脑连接,通过附带的USB A到mini-B电缆和通信编程软件,如Atmel Studio或AVRDUDE,通过一个虚拟的COM端口使用AVRISPV2/STK500协议。

4、操作系统: Windows XP, Windows Vista, Windows 7, Windows 8, and Linux

5、TTL串行端口:USB AVR编程作为一个编程器安装两个虚拟COM端口的USB到串口适配器:一个用于通信的编程软件和一个通用USB到串口适配器,这意味着通过TTL串口你可以任意地切换一个AVR编程和调试,而无需打开和关闭终端程序。

6、SLO-scope:此装置还可以应用于另外两个渠道。严重限制的示波器( SLO范围)用A和B引脚为模拟电压输入和的Pololu SLO范围为Windows应用程序的SLO范围可以测量电压在0 ~ 5 V (上限电压由USB电压的控制) 。如果你使用外部分压器,它支持两种采样模式: 10 kHz的两个8位模拟输入7位或20 kHz的模拟输入和数字输入,这个功能可以帮助您调试您的电路和固件。

General AVR ISP Programmer:

The Pololu USB AVR Programmer is an extremely compact, low-cost in-system programmer (ISP) for Atmel’s AVR mirocontrollers, which makes this device an attractive programming solution for AVR-based controllers like Pololu Orangutan robot controllers. The USB AVR programmer connects to your computer’s USB port via an included USB A to mini-B cable and communicates with your programming software, such as Atmel Studio or AVRDUDE, through a virtual COM port using the AVRISPV2/STK500 protocol. The programmer connects to your target device via an included 6-pin ISP programming cable (the older, 10-pin ISP connections are not directly supported, but it’s easy to create or purchase a 6-pin-to-10-pin ISP adapter).

Supported Microcontrollers:

The programmer should work with all AVRs that can be programmed with the AVR ISP interface, but it has not been tested on all devices. It has been tested with all Orangutan robot controllers and the 3pi Robot. The programmer features upgradable firmware, allowing updates for future devices. It does not currently work with Atmel’s XMega line of microcontrollers.

The programmer is powered by the 5V USB power bus, and it is intended for programming AVRs that are running at close to 5 V (note that the programmer does not deliver power to the target device).

Supported Operating Systems:

The programmer has been tested under Windows XP, Windows Vista, Windows 7, Windows 8, and Linux. We provide limited support for using this programmer on Mac OS X; please see the user’s guide for details. This programmer is not compatible with older versions of Windows.

Bonus Feature: TTL-level serial port:




Bonus Feature: SLO-scope:

This device can also act as a two-channel, severely limited oscilloscope (SLO-scope) using the A and B pins as analog voltage inputs and the Pololu SLO-scope application for Windows. The SLO-scope can measure voltages between 0 and ~5 V (the maximum is limited by the USB bus voltage), or higher if you use an external voltage divider, and it supports two sampling modes: 10 kHz sampling of two 8-bit analog inputs or 20 kHz sampling of one 7-bit analog input and one digital input. This feature can help you debug your circuits and firmware by seeing what the voltages are doing at various nodes. (Please note that the SLO-scope feedback is quite limited and is not intended as a substitute for a real oscilloscope or a good multimeter, which will have much higher input impedance, better resolution and range, and higher sampling frequency.) The SLO-scope is not supported in Mac OS or Linux.

Included Accessories:

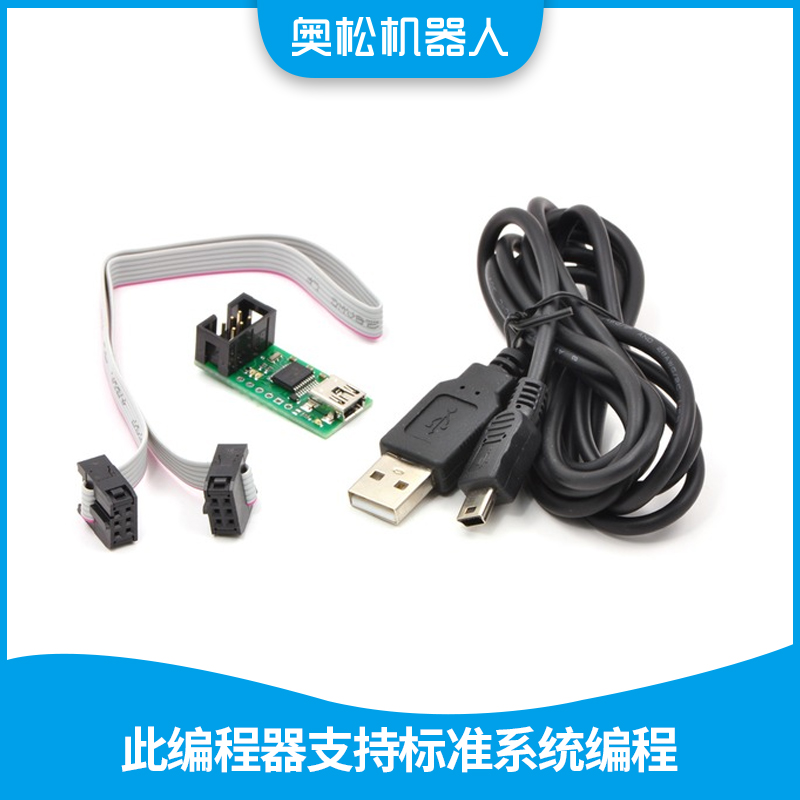

The Pololu USB AVR Programmer ships with a 12" (30 cm) 6-pin ISP programming cable and a 6’ (1.8 m) USB A to mini-B cable. It does not ship with software or documentation, but software (including drivers) and documentation can be found under the resources tab.

相关下载文件:

1.Pololu USB AVR Programmer User’s Guide

http://www.pololu.com/docs/pdf/0J36/pololu_usb_avr_programmer.pdf

2.Pololu AVR Programming Quick Start Guide

http://www.pololu.com/docs/pdf/0J51/avr_programming_quick_start_guide.pdf

File downloads:

1.Pololu AVR Development Bundle for Windows (release 131009)(11MB exe)

http://www.pololu.com/product/1300/resources

2.USB AVR Programmer Windows Drivers and Software release 121114(11MB pdf)

http://www.pololu.com/docs/pdf/0J51/avr_programming_quick_start_guide.pdf


相关应用图片:




Pololu SLO-scope client for Windows.




Pololu USB AVR programmer configuration utility for Windows.


注意:此编程器支持标准系统编程(ISP),有时也被称为在线串行编程(ICSP)。不支持JTAG,debugWIRE的,或高电压编程。


推荐搭配:

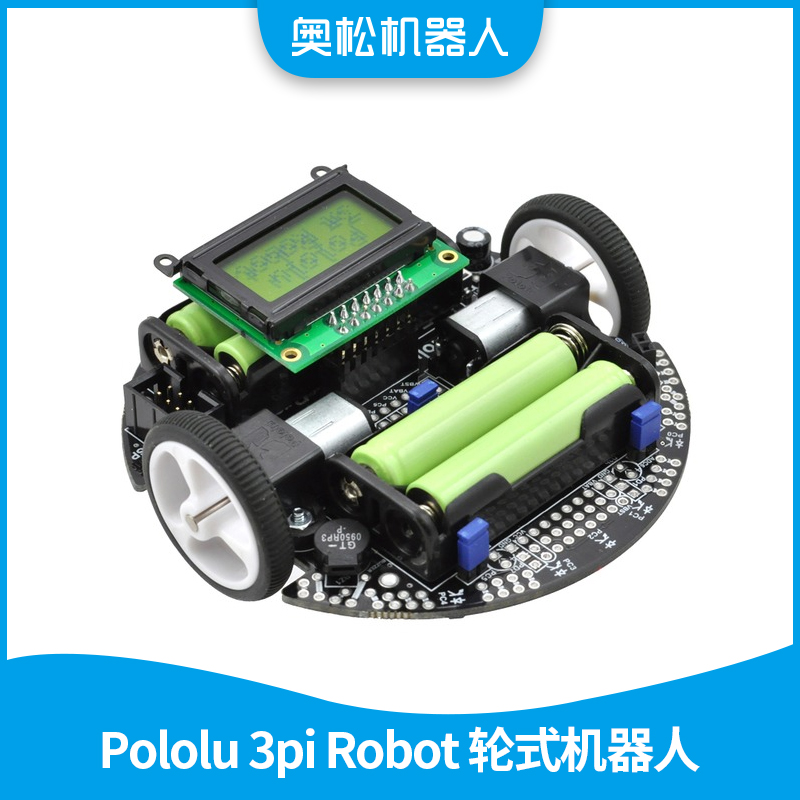

Pololu 3pi Robot 轮式机器人
