产品概述

奥松机器人推出的LCD 12864液晶摇杆扩展板采用全新12864G-0088液晶屏为主体显示器件。此扩展板采用Arduino叠层板设计理念,可直接插接到Arduino UNO、Arduino mega328、Arduino mega2560、Arduino ADK控制器上使用,可以清晰显示中文、英文、字符、图片等;板上添加五向微型摇杆,方便实现人机互动;同时本板还具有5个模拟扩展接口和8个字扩展接口;其中各数字接口均分别用黑色、红色、黄色排针来区别电源地、电源正极和信号IO管脚;即方便操作又具有防呆的作用;而且扩展接口可连接各种传感器模块,如温度湿度传感器、三轴加速度计等,是制作显示互动作品不可获缺的显示器。

规格参数

  1. 产品名称:LCD12864液晶摇杆扩展版
  2. 产品货号:RB-05L007A
  3. 工作电压:3.3V
  4. 点阵:128x64
  5. 视窗尺寸:39.8mm x25.5mm
  6. 显示颜色:白色背光黑色文字
  7. 工作温度:0°C~+85°C
  8. 数据类型:数字输入
  9. 尺寸:70mm x 53mm

接口定义

  1. S:信号接口
  2. V:电源正极
  3. G/GND:电源地
  4. RST:同Arduino复位接口
  5. 3V3:同Arduino 3.3V接口
  6. VCC:同Arduino 5V接口
  7. VIN:同Arduino VIN接口

使用方法

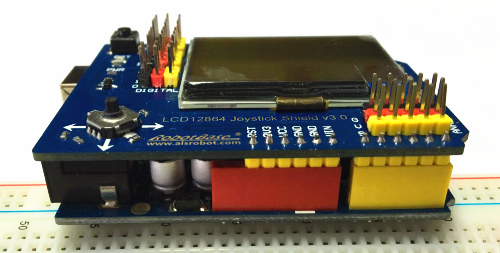

连接示意图

如图所示,将12864液晶摇杆扩展板与 Arduino 控制器连接在一起


例子程序

#define cs_mini12864 2   //片选 低电平片选
#define rst_mini12864 3 //物理重置.低电平有效
#define rs_mini12864 4   //寄存器选择 1:数据寄存器 0:指令寄存器
#define sck_mini12864 5 //时钟
#define sda_mini12864 6 //数据
//上面的脚可以自己修改
#define  Display  0xAF     //显示开启
#define  Power    0x2F           //电源全开
#define  VO       0x24     //对比度调节
#define  AllPoint 0xA4           //非全屏显示
#define  ADCset   0xA1            //负向,131-4
#define  COMset   0xc0            //com0-com63
#define  ELECTVO  0x81     //亮度调节         调节颜色         不同的模块需要不同的  ELECTSET
#define  ELECTSET 0x2a           //亮度数值         调节颜色         不同的模块需要不同的        数值
#define  BIASSET  0xA2    //占空比1/9

unsigned char  ao[]={0x00,0x00,0xFC,0x04,0x54,0xE6,0x45,0xF4,0x44,0xE4,0x54,0x04,0xFC,0x00,0x00,0x00,
0x88,0x88,0x4B,0x48,0x29,0x28,0x18,0x0D,0x18,0x28,0x29,0x48,0x4B,0x88,0x88,0x00};/*"奥",0*/

unsigned char  song[]={0x10,0x10,0xD0,0xFF,0x90,0x10,0x80,0x60,0x1E,0x00,0xE0,0x07,0x18,0x60,0x80,0x00,
0x04,0x03,0x00,0xFF,0x00,0x03,0x20,0x70,0x2C,0x23,0x20,0x20,0x24,0x38,0x60,0x00};/*"松",1*/

unsigned char  ji[]={0x10,0x10,0xD0,0xFF,0x90,0x10,0x00,0xFE,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,
0x04,0x03,0x00,0xFF,0x00,0x83,0x60,0x1F,0x00,0x00,0x00,0x3F,0x40,0x40,0x78,0x00};/*"机",2*/

unsigned char  qi[]={0x80,0x80,0x9E,0x92,0x92,0x92,0x9E,0xE0,0x80,0x9E,0xB2,0xD2,0x92,0x9E,0x80,0x00,
0x08,0x08,0xF4,0x94,0x92,0x92,0xF1,0x00,0x01,0xF2,0x92,0x94,0x94,0xF8,0x08,0x00};/*"器",3*/

unsigned char  ren[]={0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x3F,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x80,0x40,0x20,0x10,0x0C,0x03,0x00,0x00,0x00,0x03,0x0C,0x10,0x20,0x40,0x80,0x00};/*"人",4*/

void send_8bit_mini12864(unsigned char d)  //传8位数据,高位先传
{
        for(int i=0;i<8;i++)                    //循环8次,每次发送1个最高位
        {
                digitalWrite(sck_mini12864,0);       //时钟拉低,一位数据开始
                if(d&0x80)                          //与上10000000,最高位如果是1,就数据位就高
                        digitalWrite(sda_mini12864,1);
                else                                //与上10000000,最高位如果是0,就数据位就低
                        digitalWrite(sda_mini12864,0);
                digitalWrite(sck_mini12864,1);       //一位数据发送完毕,时钟拉高
                d<<=1;                              // d|ddddddd0    抛掉最高位,其余数据左移一位,最低位填0
        }
}

void write_cmd_mini12864(unsigned char cmd)  //写命令
{
        digitalWrite(cs_mini12864,0); //片选拉低,选中芯片
        digitalWrite(rs_mini12864,0); //rs为低,写入命令
        send_8bit_mini12864(cmd);     //写入8位命令
}

void write_dat_mini12864(unsigned char dat)  //写数据
{
        digitalWrite(cs_mini12864,0); //片选拉低,选中芯片
        digitalWrite(rs_mini12864,1); //rs为高,写入数据
        send_8bit_mini12864(dat);          //写入8位数据
}

void mini12864_cl()         //清屏,其实就是把所有的地址全部填成0
{
  unsigned char x,y;
  for(y=0;y<8;y++)
  {
    write_cmd_mini12864(0xb0+y);
    write_cmd_mini12864(0x10);
    write_cmd_mini12864(0x00);
    for(x=0;x<132;x++)  write_dat_mini12864(0);
  }
}

void mini12864_Init()   //初始化
{
  pinMode(cs_mini12864,OUTPUT);   //设置各个I/O为输出
  pinMode(rst_mini12864,OUTPUT);
  pinMode(rs_mini12864,OUTPUT);
  pinMode(sck_mini12864,OUTPUT);
  pinMode(sda_mini12864,OUTPUT);

  digitalWrite(cs_mini12864,LOW);
  digitalWrite(rst_mini12864,LOW);          //物理重置
  delay(200);
  digitalWrite(rst_mini12864,HIGH);
  delay(1000);
  write_cmd_mini12864(0xe2);                //软件重置
  delay(200);

//以下为初始设置,具体请参考数据手册

  write_cmd_mini12864(0x24);//对比度
  write_cmd_mini12864(0x81);//SET ELECTRONIC VOLUME
  write_cmd_mini12864(0x20);//set pm: 通过改变这里的数值来改变电压
  write_cmd_mini12864(0x2f);//set power control
  write_cmd_mini12864(0xa2);//BR=1/9
  write_cmd_mini12864(0xa0);//set seg direction
  write_cmd_mini12864(0xc8);//set com direction
  write_cmd_mini12864(0x40);//set scroll line

  //write_cmd(0xa6);//set inverse display           a6 off, a7 on
  //write_cmd(0xa4);//set all pixel on
  write_cmd_mini12864(0xaf);//开显示
  mini12864_cl();  //清屏
}

void mini12864_address(unsigned char page,unsigned char column)
{
      digitalWrite(cs_mini12864,0); //片选拉低,选中芯片
      column=column-1;
      page=page-1;
      write_cmd_mini12864(0xb0+page);
      write_cmd_mini12864(((column>>4)&0x0f)+0x10);
      write_cmd_mini12864(column&0x0f);
}

void full_dispaly()
{
    int i,j;
   for(i=0;i<8;i++)
  {
      digitalWrite(cs_mini12864,0); //片选拉低,选中芯片
      mini12864_address(i+1,0);
      for(j=0;j<128;j++)
      {
        write_dat_mini12864(0xff);
      }
  }
}

void disp_graphic_32X32(unsigned char page,unsigned char column,unsigned char *dp)
{
    unsigned char i,j;
    digitalWrite(cs_mini12864,0); //片选拉低,选中芯片
    for(j=0;j<4;j++)
    {
         mini12864_address(page+1,column);
       for(i=0;i<31;i++)
       {
             write_dat_mini12864(*dp);
            dp++;
       }
    }
    digitalWrite(cs_mini12864,1); //片选拉低,选中芯片
}

void display_graphic_16x16(unsigned char page,unsigned char column,unsigned char *dp)
{
      unsigned char i,j;
      digitalWrite(cs_mini12864,0); //片选拉低,选中芯片
      for(j=0;j<2;j++)
      {
             mini12864_address(page+j,column);
            for (i=0;i<16;i++)
            {
                 write_dat_mini12864(*dp); /*写数据到LCD,每写完一个8 位的数据后列地址自动加1*/
                dp++;
            }
      }
      digitalWrite(cs_mini12864,1); //片选拉低,选中芯片
}

void display_graphic_8x16(unsigned char page,unsigned char column,unsigned char *dp)
{
      unsigned char i,j;
       digitalWrite(cs_mini12864,0); //片选拉低,选中芯片
      for(j=0;j<2;j++)
      {
             mini12864_address(page+j,column);
            for (i=0;i<8;i++)
            {
                 write_dat_mini12864(*dp); /*写数据到LCD,每写完一个8 位的数据后列地址自动加1*/
                dp++;
            }
      }
      digitalWrite(cs_mini12864,1); //片选拉低,选中芯片
}

void setup()
{
        mini12864_Init();   //初始化液晶
}

void loop()
{
full_dispaly();
delay(2000);
mini12864_cl();  //清屏
display_graphic_16x16(4,24,ao);
display_graphic_16x16(4,24+16,song);
display_graphic_16x16(4,24+32,ji);
display_graphic_16x16(4,24+48,qi);
display_graphic_16x16(4,24+64,ren);
delay(5000);

}
}

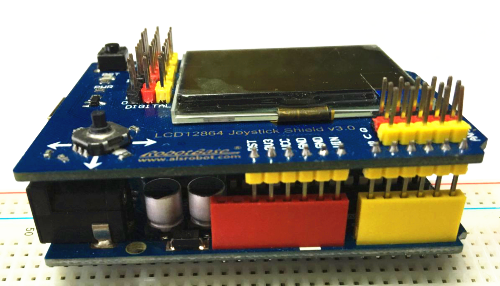

程序效果

程序下载到 Arduino 控制器之后就可以显示出汉字“奥松机器人”了。


[ Arduino LCD 12864液晶摇杆扩展板]

资料下载

  • 产品资料

下载链接: https://pan.baidu.com/s/1amSPthA7Q4XAOIz8ZltMSg 提取码:cnad
