SKU:RB-02S102 Gesture Sensor

来自ALSROBOT WiKi
跳转至: 导航搜索

目录

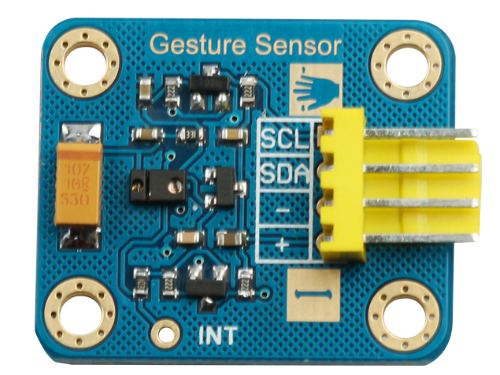

产品概述

Gesture Sensor模块是基于APDS-9960传感器的一款能够识别手势移动方向(上下左右)的传感器模块。APDS-9960芯片集成了RGB、环境光、接近和手势检测功能。模块使用I2C接口,使用相应arduino库函数即可对编程控制,传感器返回的信号可用于作为机器人接收的控制信号,从而实现对机器人的控制。内置的识别算法相当智能,能够把双手从生硬的按键中解放出来。

产品参数

  1. 输入电压:3.3V - 5V
  2. 引脚接口:IIC接口* 1、中断引脚 * 1
  3. 接口类型:直插、KF2510
  4. 输出信号:数字
  5. 产品尺寸:30 mm * 25 mm
  6. 定位孔:4 * M3,间距 23mm x 18mm
  7. 检测距离:10 cm
  8. 重量大小:3g
  • 产品尺寸图:

使用方法_1(Arduino 控制器)

使用硬件

  • 1 * Arduino UNO 控制器
  • 杜邦线若干
  • USB 数据线

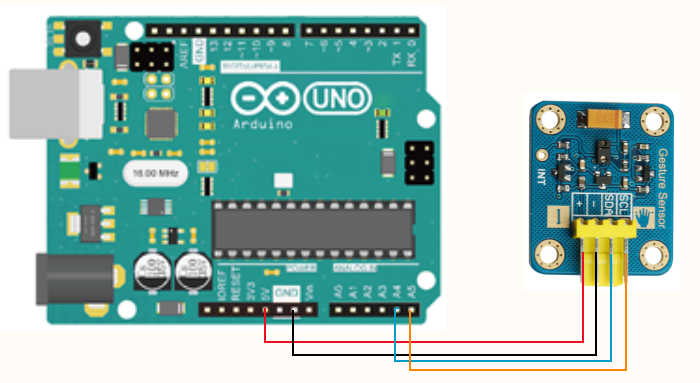

硬件连接


Arduino_code_1

#include <Wire.h>
#include <ALS_APDS9960.h>

ALS_APDS9960 apds = ALS_APDS9960();
int isr_flag = 0;

void setup() {
  Serial.begin(9600);
  Serial.println();
  Serial.println(F("--------------------------------"));
  Serial.println(F("SparkFun APDS-9960 - GestureTest"));
  Serial.println(F("--------------------------------"));

  if ( apds.init() ) {
    Serial.println(F("APDS-9960 initialization complete"));
  } else {
    Serial.println(F("Something went wrong during APDS-9960 init!"));
  }

  // Start running the APDS-9960 gesture sensor engine
  if ( apds.enableGestureSensor(true) ) {
    Serial.println(F("Gesture sensor is now running"));
  } else {
    Serial.println(F("Something went wrong during gesture sensor init!"));
  }
}

void loop() {
    handleGesture();
    delay(50);
}

void handleGesture() {
    if ( apds.isGestureAvailable() ) {
    switch ( apds.readGesture() ) {
      case DIR_UP:
        Serial.println("UP");
        break;
      case DIR_DOWN:
        Serial.println("DOWN");
        break;
      case DIR_LEFT:
        Serial.println("LEFT");
        break;
      case DIR_RIGHT:
        Serial.println("RIGHT");
        break;
      case DIR_NEAR:
        Serial.println("NEAR");
        break;
      case DIR_FAR:
        Serial.println("FAR");
        break;
      default:
        Serial.println("NONE");
    }
  }
}

程序效果

手在上下左右远近滑过经过传感器时,串口会打印如图所示的数据


使用方法_2(Arduino 控制器)

使用硬件

  • 1 * LED 发光模块
  • 1 * Arduino 控制器
  • 1 * 传感器扩展板 V5.0
  • 1 * 手势传感器
  • 1 * USB 数据线
  • 1 * 4P 传感器连接线
  • 杜邦线若干

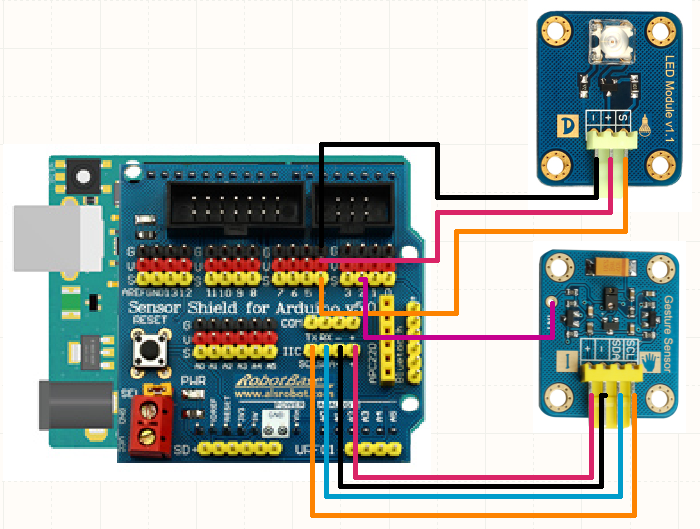

硬件连接


Arduino_code_2

#include <Wire.h>
#include <ALS_APDS9960.h>
#define led 4
#define APDS9960_INT    2
ALS_APDS9960 apds = ALS_APDS9960();
int temp = 0;
int isr_flag = 0;

void setup() {
  pinMode(led,OUTPUT);
  pinMode(APDS9960_INT, INPUT);

  Serial.begin(9600);
  Serial.println();
  Serial.println(F("--------------------------------"));
  Serial.println(F("ALS_APDS-9960 - GestureTest"));
  Serial.println(F("--------------------------------"));

  attachInterrupt(0, interruptRoutine, FALLING);

  if ( apds.init() ) {
    Serial.println(F("APDS-9960 initialization complete"));
  } else {
    Serial.println(F("Something went wrong during APDS-9960 init!"));
  }

  if ( apds.enableGestureSensor(true) ) {
    Serial.println(F("Gesture sensor is now running"));
  } else {
    Serial.println(F("Something went wrong during gesture sensor init!"));
  }
}

void loop() {
  if( isr_flag == 1 ) {
    detachInterrupt(0);
    handleGesture();
    isr_flag = 0;
    attachInterrupt(0, interruptRoutine, FALLING);
  }

}

void interruptRoutine() {
  isr_flag = 1;
      switch(temp){
      case 1:
        digitalWrite(led,HIGH);
        break;
      case 2:
        digitalWrite(led,LOW);
        break;
      }
}

void handleGesture() {
    if ( apds.isGestureAvailable() ) {
    switch ( apds.readGesture() ) {
      case DIR_UP:
        Serial.println("UP");
        temp = 1;
        break;
      case DIR_DOWN:
        Serial.println("DOWN");
        temp = 2;
        break;
      case DIR_LEFT:
        Serial.println("LEFT");
        break;
      case DIR_RIGHT:
        Serial.println("RIGHT");
        break;
      case DIR_NEAR:
        Serial.println("NEAR");
        break;
      case DIR_FAR:
        Serial.println("FAR");
        break;
      default:
        Serial.println("NONE");
        temp = 0;
    }
  }
}

程序效果

  • 向上滑动时,通过串口打印‘UP’,同时 LED 亮起
  • 向下滑动时,通过串口打印‘DOWM’,同时 LED 熄灭

应用案例

1、测试环境

  • 硬件环境:Starduino UNO R3 、传感器V5.0扩展板、红外手势传感器、8*8点阵
  • 软件环境:Arduino IDE 1.7.7

2、引脚定义

  • -:电源地
  • +:电源正极
  • SDA:数据引脚
  • SCL:时引脚

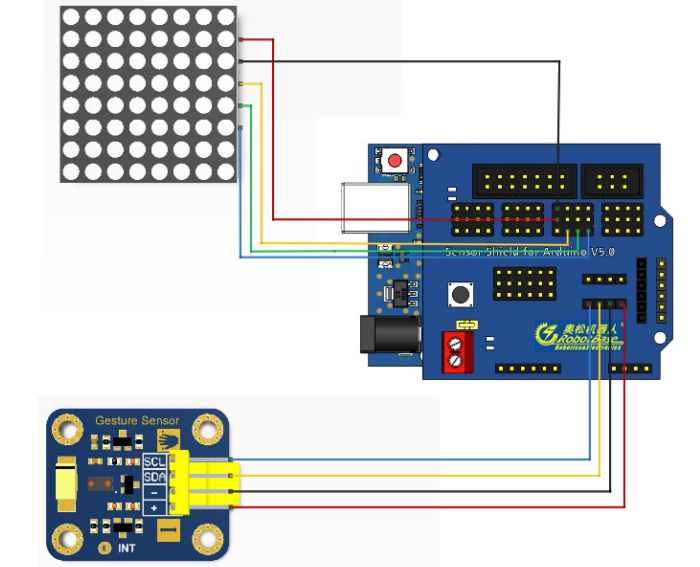

3、硬件连接


4、例子程序

#include <Wire.h>
#include <ALSROBOT_APDS9960.h>
const int DINPin = 4;         //数据引脚 连接到数字P4口
const int CLKPin = 5;         //时钟引脚 连接到数字P5口
const int LTHPin = 6;         //锁存引脚 连接到数字P6口

byte LieScan[16] = {                         //列扫描,点阵只点亮一列
  0xFE,0xFD,0xFB,0xF7,0xEF,0xDF,0xBF,0x7F
};
byte HanZi_1[] = {
  0x1c,0x7c,0x7e,0x3f,0x3f,0x7e,0x7c,0x1c    //显示心形图案
};
char Left[]={0x00,0x18,0x3c,0x7e,0x18,0x18,0x18,0x00};
char Down[]={0x00,0x10,0x30,0x7e,0x7e,0x30,0x10,0x00};
char Up[]={0x00,0x08,0x0c,0x7e,0x7e,0x0c,0x08,0x00};
char Right[]={0x00,0x18,0x18,0x18,0x7e,0x3c,0x18,0x00};
char Far[]={0xff,0xff,0xc3,0xc3,0xc3,0xc3,0xff,0xff};
char Near[]={0x00,0x00,0x3c,0x3c,0x3c,0x3c,0x00,0x00};
char Moren[]={0x18,0x3c,0x5a,0xff,0xff,0x5a,0x3c,0x18};

ALSROBOT_APDS9960 apds = ALSROBOT_APDS9960();
int isr_flag = 0;
int temp=0;

void setup() {
  pinMode(DINPin,OUTPUT);      //设置数据引脚为输出
  pinMode(CLKPin,OUTPUT);      //设置锁存引脚为输出
  pinMode(LTHPin,OUTPUT);      //设置时钟引脚为输出
  // Initialize Serial port
  Serial.begin(9600);
  Serial.println();
  Serial.println(F("--------------------------------"));
  Serial.println(F("ALSROBOT APDS-9960 - GestureTest"));
  Serial.println(F("--------------------------------"));

  if ( apds.init() ) {
    Serial.println(F("APDS-9960 initialization complete"));
  } else {
    Serial.println(F("Something went wrong during APDS-9960 init!"));
  }

  // Start running the APDS-9960 gesture sensor engine
  if ( apds.enableGestureSensor(true) ) {
    Serial.println(F("Gesture sensor is now running"));
  } else {
    Serial.println(F("Something went wrong during gesture sensor init!"));
  }
}

void left(){
  for(unsigned char times_1 = 0;times_1 <250;times_1++) {  //持续刷新250次
    for(char x = 0;x <8;x++) {
      shiftOut(DINPin, CLKPin, MSBFIRST, LieScan[x]);  //先选择列
      shiftOut(DINPin, CLKPin, MSBFIRST, Left[x]);  //再送行数据
      digitalWrite(LTHPin, LOW);    //刷新显示
      digitalWrite(LTHPin, HIGH);
    }
  }
}

void down()
{
    for(unsigned char times_1 = 0;times_1 <250;times_1++) {  //持续刷新250次
    for(char x = 0;x <8;x++) {
      shiftOut(DINPin, CLKPin, MSBFIRST, LieScan[x]);  //先选择列
      shiftOut(DINPin, CLKPin, MSBFIRST, Down[x]);  //再送行数据
      digitalWrite(LTHPin, LOW);    //刷新显示
      digitalWrite(LTHPin, HIGH);
    }
  }
}
void up()
{
       for(unsigned char times_1 = 0;times_1 <250;times_1++) {  //持续刷新250次
    for(char x = 0;x <8;x++) {
      shiftOut(DINPin, CLKPin, MSBFIRST, LieScan[x]);  //先选择列
      shiftOut(DINPin, CLKPin, MSBFIRST, Up[x]);  //再送行数据
      digitalWrite(LTHPin, LOW);    //刷新显示
      digitalWrite(LTHPin, HIGH);
    }
  }
}

void right()
{
       for(unsigned char times_1 = 0;times_1 <250;times_1++) {  //持续刷新250次
    for(char x = 0;x <8;x++) {
      shiftOut(DINPin, CLKPin, MSBFIRST, LieScan[x]);  //先选择列
      shiftOut(DINPin, CLKPin, MSBFIRST, Right[x]);  //再送行数据
      digitalWrite(LTHPin, LOW);    //刷新显示
      digitalWrite(LTHPin, HIGH);
    }
  }
}

void far()
{
       for(unsigned char times_1 = 0;times_1 <250;times_1++) {  //持续刷新250次
    for(char x = 0;x <8;x++) {
      shiftOut(DINPin, CLKPin, MSBFIRST, LieScan[x]);  //先选择列
      shiftOut(DINPin, CLKPin, MSBFIRST, Far[x]);  //再送行数据
      digitalWrite(LTHPin, LOW);    //刷新显示
      digitalWrite(LTHPin, HIGH);
    }
  }
}

void near()
{
       for(unsigned char times_1 = 0;times_1 <250;times_1++) {  //持续刷新250次
    for(char x = 0;x <8;x++) {
      shiftOut(DINPin, CLKPin, MSBFIRST, LieScan[x]);  //先选择列
      shiftOut(DINPin, CLKPin, MSBFIRST, Near[x]);  //再送行数据
      digitalWrite(LTHPin, LOW);    //刷新显示
      digitalWrite(LTHPin, HIGH);
    }
  }
}
void moren()
{
       for(unsigned char times_1 = 0;times_1 <250;times_1++) {  //持续刷新250次
    for(char x = 0;x <8;x++) {
      shiftOut(DINPin, CLKPin, MSBFIRST, LieScan[x]);  //先选择列
      shiftOut(DINPin, CLKPin, MSBFIRST, 0x00);  //再送行数据
      digitalWrite(LTHPin, LOW);    //刷新显示
      digitalWrite(LTHPin, HIGH);
    }
  }
}



void loop() {

  switch(temp)
  {
      case 1:up();break;
      case 2:down();break;
      case 3:left();break;
      case 4:right();break;
      case 5:near();break;
      case 6:far();break;
      default :moren();break;
  }
  handleGesture();
}

void handleGesture() {
    if ( apds.isGestureAvailable() ) {
    switch ( apds.readGesture() ) {
      case DIR_UP:
        temp=1;
        Serial.println("UP");
        break;
      case DIR_DOWN:
      temp=2;
        Serial.println("DOWN");
        break;
      case DIR_LEFT:
        temp=3;
        Serial.println("LEFT");
        break;
      case DIR_RIGHT:
        temp=4;
        Serial.println("RIGHT");
        break;
      case DIR_NEAR:
        temp=5;
        Serial.println("NEAR");
        break;
      case DIR_FAR:
        temp=6;
        Serial.println("FAR");
        break;
      default:temp=7;
        Serial.println("NONE");
    }
  }
}

5、程序效果 如图所示,当手滑动时,点阵显示相应的滑动方向
